NITTO ACH-16 AIR CHIPPER |
|
|
| Product name : NITTO ACH-16 AIR CHIPPER |
| Item : |
| Details : |
Features
- Ideal tool for quickly and efficiently removing weld splatter, rust and other debris from most surfaces
- Compact, heavy-duty construction for tough industrial applications
- Easy one-touch chisel installation and removal – NO tools required
- Idle protection system, helps prevent accidental start-up“ACH-16” only
- One year limited warranty
| |
ACH-16
|
CH-24
|
| |
Chipping Hammer with idle protection system
|
Chipping Hammer for use removal of debris
|
| Air Pressure |
85 PSI
|
85 PSI
|
| Air Consumption |
5.3 CFM
|
7.1 CFM
|
| Strokes per Minute |
6,000 SPM
|
4,000 SPM
|
| Shank Size |
27/64” (10.5 mm) Round
|
1/2” Square
|
| Hose Size |
3/8” ID
|
3/8” ID
|
| Weight |
2.2 lbs.
|
3.7 lbs.
|
| Accessories Included |
- TQ03431 - Flat Chisel
- Hose Nipple PT3/8” x 3/8”
- Threaded Adapter PT3/8” x NPT3/8”
|
- TP15166 - Curved Flat Chisel
- Hose Nipple PT3/8” x 3/8”
- Threaded Adapter PT3/8” x NPT3/8”
|

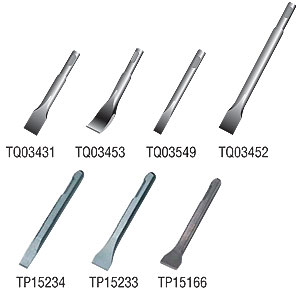

Optional Chisels
 |
ACH-16 Chisels
|
PN
|
Description
|
Qty
|
| TQ03431 |
Flat Chisel 3/4” x 4-3/4” (20 mm x 120 mm) |
1 pc. |
| TQ03453 |
Curved Flat Chisel 3/4” x 4-3/4” (20 mm x 120 mm) |
1 pc. |
| TQ03549 |
Flat Chisel 7/16” x 4-3/4” (11 mm x 120 mm) |
1 pc. |
| TQ03452 |
Flat Chisel 3/4” x 7-1/16” (20 mm x 180 mm) |
1 pc. |
CH-24 Chisels
|
PN
|
Description
|
Qty
|
| TP15234 |
Straight Flat Chisel 1/2” x 6-1/2” (12.7 mm x 165 mm)
|
1 pc. |
| TP15233 |
Flat Chisel 1” x 6-1/8”(25 mm x 155 mm) |
1 pc. |
| TP15166 |
Curved Flat Chisel 1” x 6-1/8” (25 mm x 155 mm) |
1 pc. |
|
|
 |
